Cable Distribution Box
CNKEEYA is a reputable supplier based in China, specializing in top-quality Cable Distribution Boxes. Their products exemplify excellence in design and functionality, providing reliable solutions for various industries. With a commitment to superior craftsmanship, Keeya ensures that their Cable Distribution Boxes meet and exceed industry standards. As a trusted supplier, Keeya offers a wide range of options to cater to diverse needs, making them a go-to choice for businesses seeking dependable and efficient electrical distribution solutions.

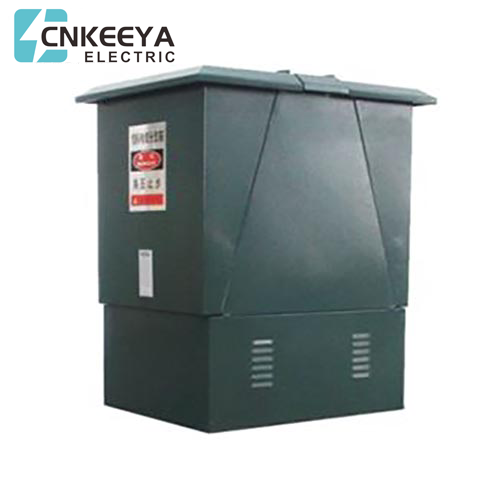

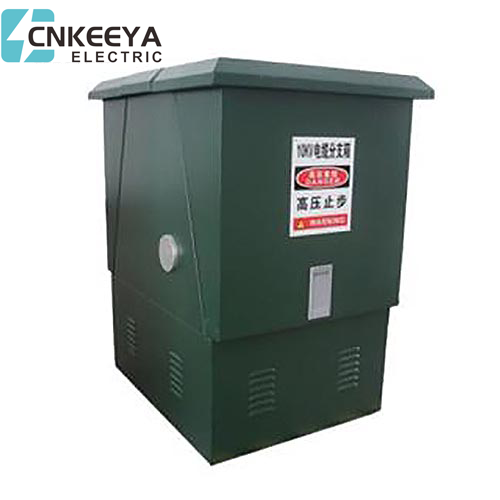

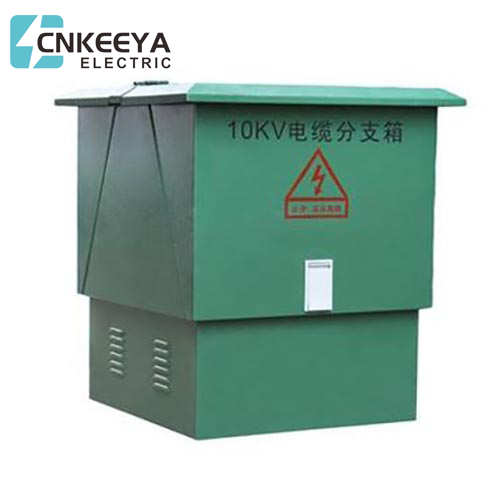

The DFW series Cable Distribution box is designed for outdoor use and features a completely sealed structure, achieving an impressive IP33 protection rating. Constructed with high-quality stainless steel, the cable joint bracket ensures durability, while the external form is crafted from robust 2mm stainless steel plate.
Internally, the box is divided into a bus room and cable bin by the cable warehouse roof. The bus room, enclosed by 2mm thick steel plate, is a sealed compartment. Positioned at the upper section of the bus room, the cable joint bracket supports the bushing, which securely anchors the cable joint. The inter-phase distance between cable joints is precisely set at 180mm.
In the case of the arrester type, the arrester is strategically positioned at the cable connector's end. Furthermore, the bus room is equipped with both short circuit indicators and live displays. All live components within the bus room undergo meticulous treatment with silicone rubber insulation for utmost safety.
Located in the lower portion of the bus room, the cable warehouse serves as the conduit for cable entry and exit. Here, cable fixing clamps and grounding terminals are provided for secure installation.
Here are the functions and features of the Cable Distribution Box:
1. Ensures personal safety with complete insulation and sealing.
2. Specifically designed for outdoor use, providing excellent protection against dust, moisture, floods, corrosion, and environmental challenges.
3. Offers flexible combinations, accommodating two to six incoming and outgoing lines to meet diverse wiring needs.
4. Boasts a compact, aesthetically pleasing design with a small footprint, ensuring straightforward installation and maintenance-free operation.
5. Equipped with a rechargeable display for convenient monitoring.
6. Capable of incorporating a short circuit indicator for added safety measures.
7. Optionally equipped with a lightning arrester for enhanced protection against surges.
The use of Cable Distribution box:
|
project |
data |
|
Joint resistance |
40 μΩ |
|
Conductor operating temperature |
<95ºC |
|
partial discharge |
≤l0pc/13kV |
|
moisture test |
11kV/100 pass |
|
Applicable cable type |
XLPE |
|
Applicable cable section |
25°C~4 00°C |
|
Applicable ambient temperature |
40P~+50°C |
|
Applicable altitude |
<3000m |
Main Technical Parameter:
|
Rated Voltage |
12KV |
|
Rated Current |
630A |
|
Dynamic steady current |
50KA/0.3s |
|
Thermally stable current |
20KA/3s |
|
1 min power frequency withstand voltage |
42KV |
|
15 minutes DC withstand voltage |
52KV |
|
Light impulse withstand voltage |
105KV |
|
Box Protection Level |
IP33 |
