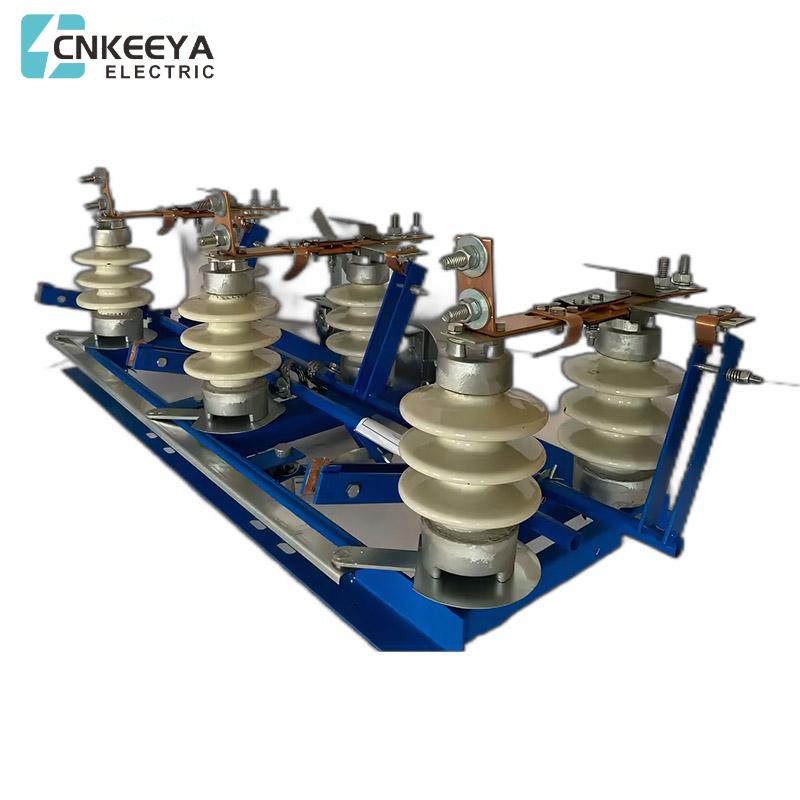

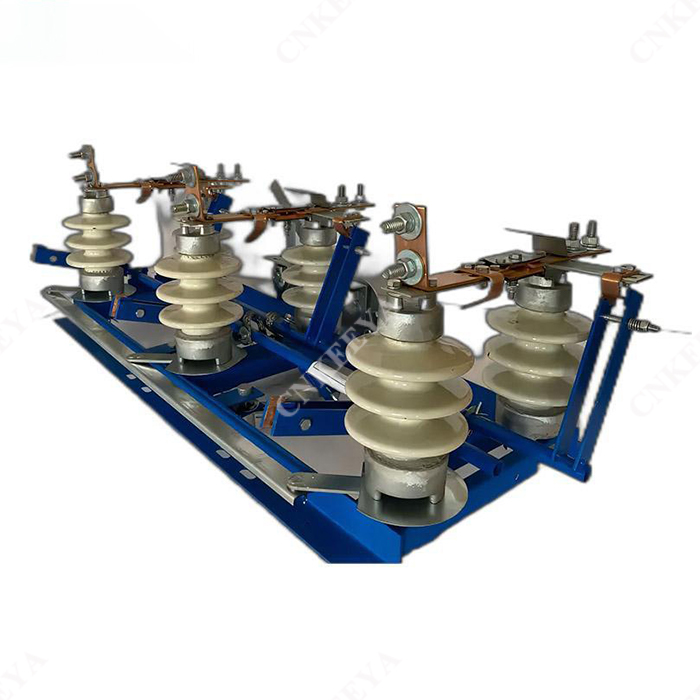

Disconnector RLND-1-10 II / 400 UHL1 is used in the repair and prevention of high-voltage

electrical networks or electrical equipment with a voltage of 10 kV, providing safe removal of

voltage from previously de-energized consumer circuits, while all disconnected consumer circuits

are effectively grounded.

Specifications:

Rated voltage, kV .......................... 10

The highest operating voltage, kV .............. 12

Rated current, A ......................................... 400

Thermal resistance current, kA ....................... 10

Current of electrodynamic resistance, kA ........ 25

After the current flow time, since:

- for the main knives .......................................... 3

- for grounding knives ..................................... 1

Permissible strain from wires in the horizontal plane, taking into account

influence of wind and ice, no more, N .......... 200

Creepage distance of external insulation, cm ..... 30

MTBF, cycles, B-O ..................... 1000

Overall dimensions, mm .................................. 1115 x485x370

Weight, kg, no more ............................................ 35

RLND-1-10 II / 400 is indispensable for:

- turning on and off the voltage of de-energized sections of the high voltage electrical circuit;

- the presence of a visible compartment of electrical equipment, in which there is a need for

protected equipment or equipment repair;

- turning on and off idling current for sugar transformers;

- grounding de-energized fragments of the circuit using stationary grounding conductors
