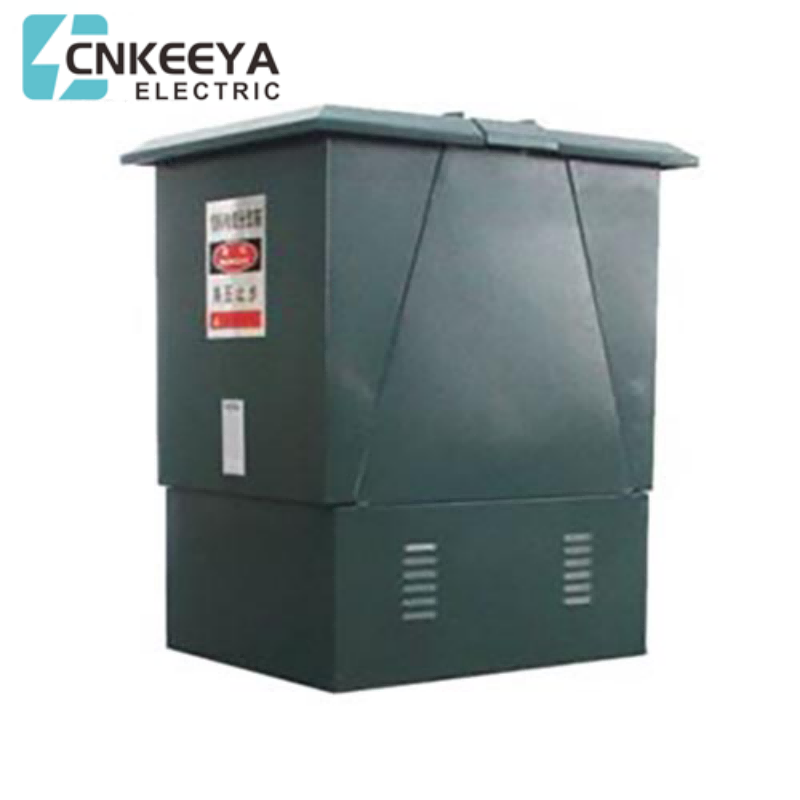

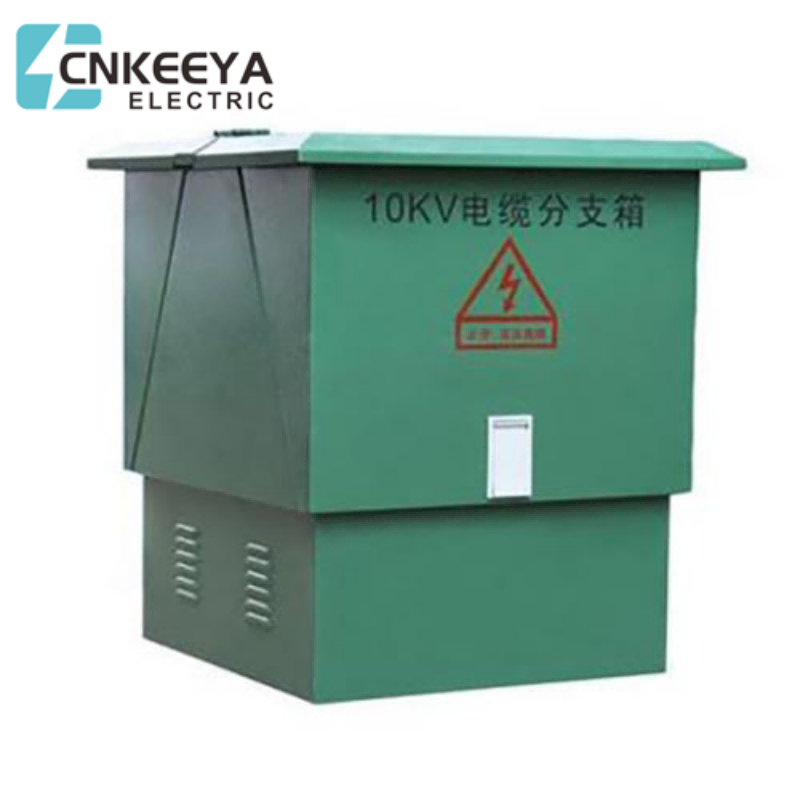

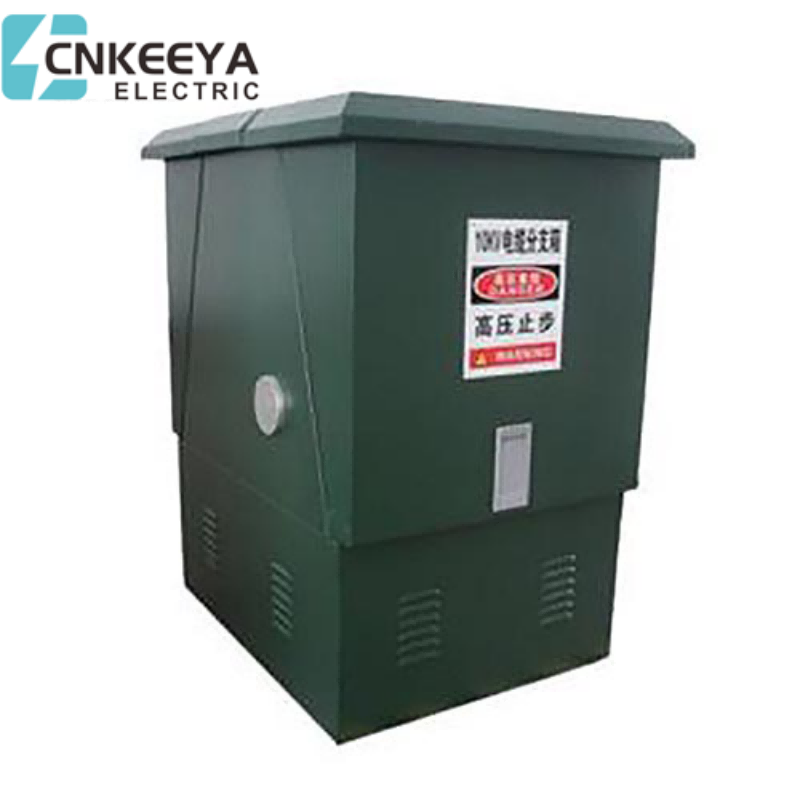

European High Voltage Cable Distribution Box

Parameter

Description

Rated Voltage

Maximum voltage level the distribution box is designed to handle.

Rated Current

Maximum current capacity that the distribution box can safely handle.

Frequency

Operating frequency of the distribution box, typically 50Hz in Europe.

IP Rating

Ingress Protection rating indicating protection against solid objects and liquids.

Insulation Material

Material used for insulation to prevent electrical conduction between conductive parts.

Enclosure Material

Material used for the outer casing or enclosure, specified for durability and suitability.

Dimensions

Physical size and dimensions of the distribution box, including height, width, and depth.

Weight

Weight of the distribution box, relevant for transportation and installation considerations.

Short-Circuit Withstand Strength

Ability to withstand short-circuit currents without damage.

Temperature Range

Range of temperatures within which the distribution box can operate safely and effectively.

Degree of Protection against Electric Shock

Indicates level of protection against electric shock provided by the distribution box.

Creepage Distance

Shortest distance along the surface of insulating material between two conductive parts.

Clearance Distance

Shortest distance through air between two conductive parts.

Dielectric Strength

Maximum electric field a dielectric material can withstand without breaking down.

Overcurrent Protection

Built-in protection mechanisms or devices against excessive current.

Overvoltage Protection

Built-in protection mechanisms or devices against voltage surges.

Safety Compliance

Certifications or standards that the distribution box complies with (e.g., CE marking).
