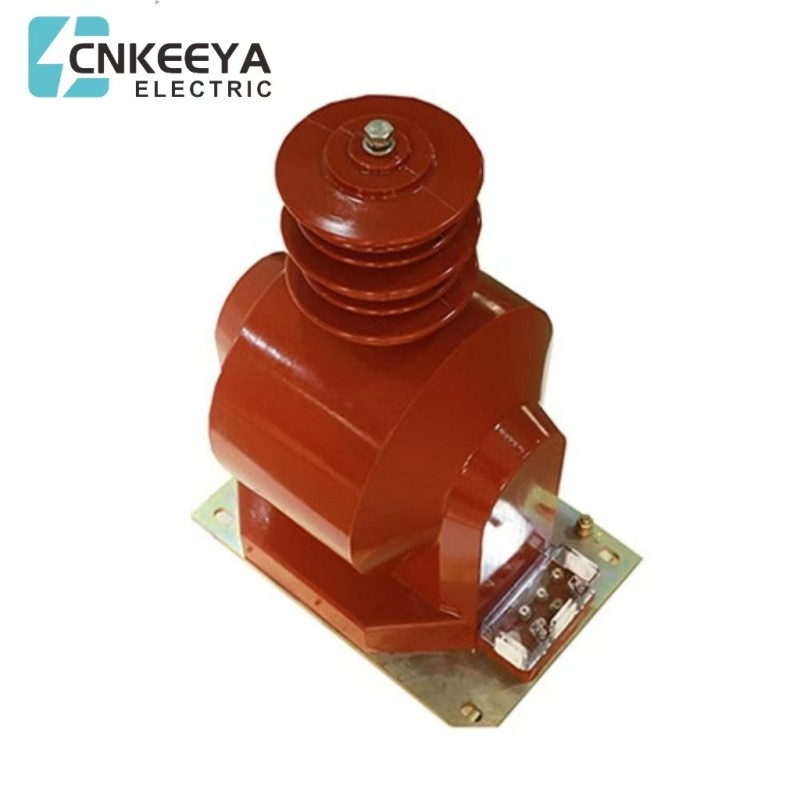

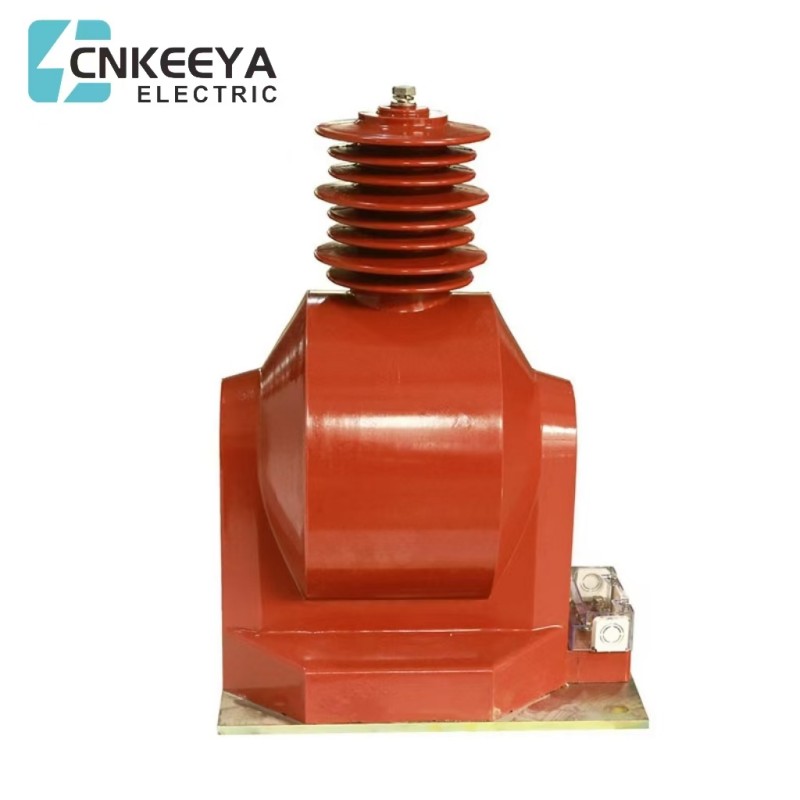

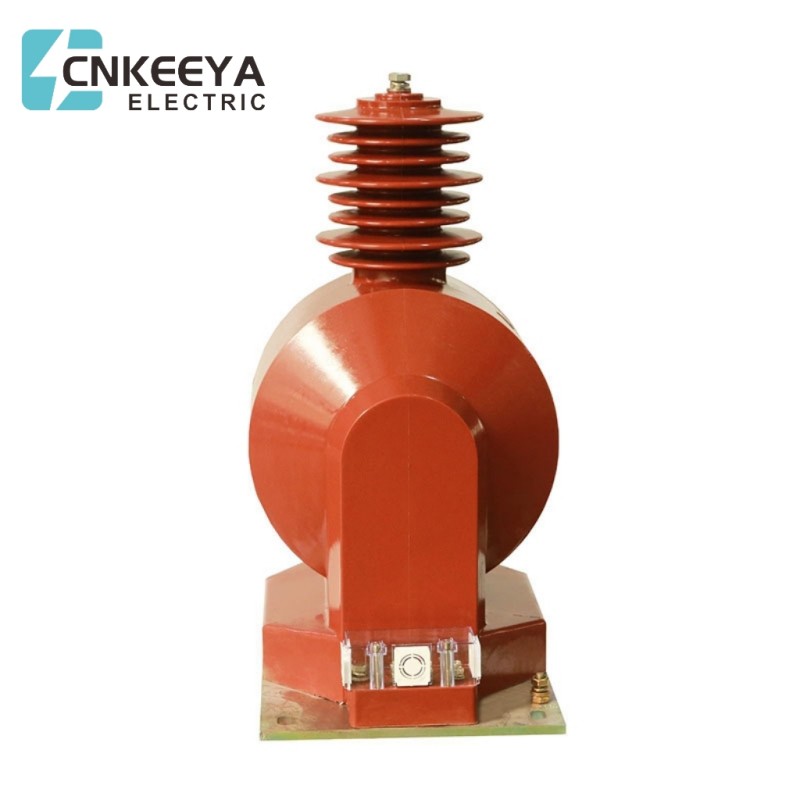

Single Phase Voltage Transformer

CNKEEYA's expertise lies in delivering products that meet international standards and cater to specific operational needs. With a commitment to excellence,CNKEEYA stands as a trusted partner for businesses seeking dependable electrical equipment. Our Single Phase Voltage Transformers are a testament to their dedication to quality and innovation in the field.

Product Overview

The voltage transformer is a compact, fully enclosed epoxy resin casting indoor unit designed for voltage and electric energy measurement, as well as relay protection in power systems operating at a rated frequency of 50Hz and a rated voltage of 24kV. Its small size and lightweight design make it space-efficient and easy to install. The overall structure is both compact and user-friendly.

This specific type of voltage transformer boasts a completely enclosed configuration, utilizing high-quality cold-rolled silicon steel for the iron core. The primary and secondary windings are expertly wound around this core. Additionally, the product exhibits excellent resistance to both pollution and moisture. Its versatile installation options allow for placement in any position or direction. The secondary outlet terminal features a terminal box with three different outlet directions, facilitating convenient wiring and enabling anti-theft measures to be implemented effectively.
