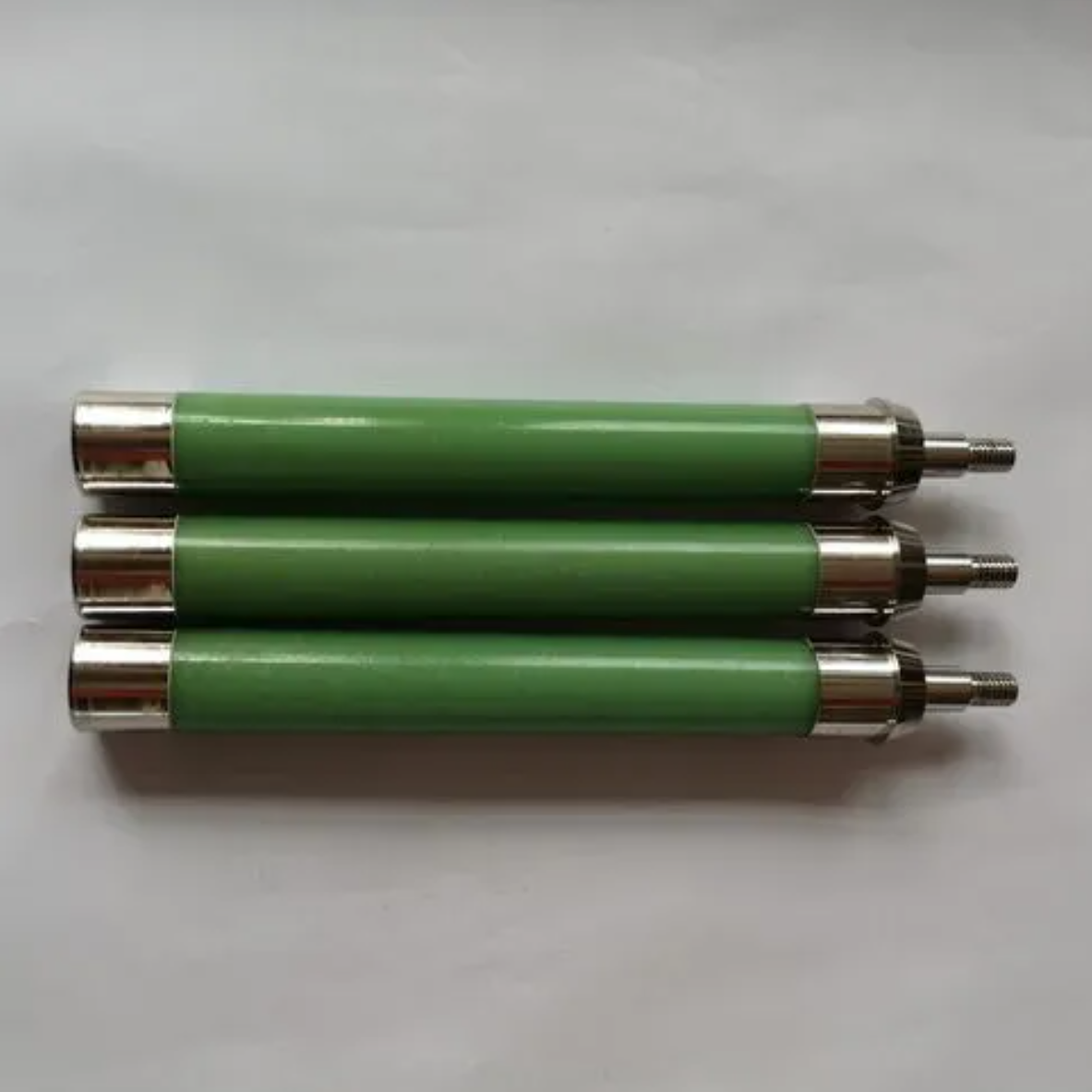

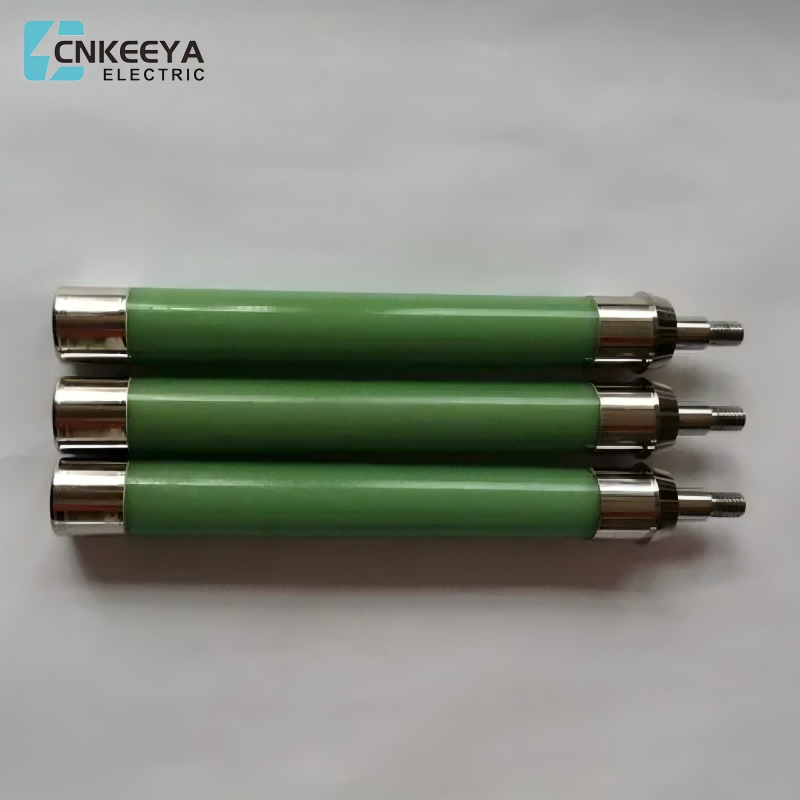

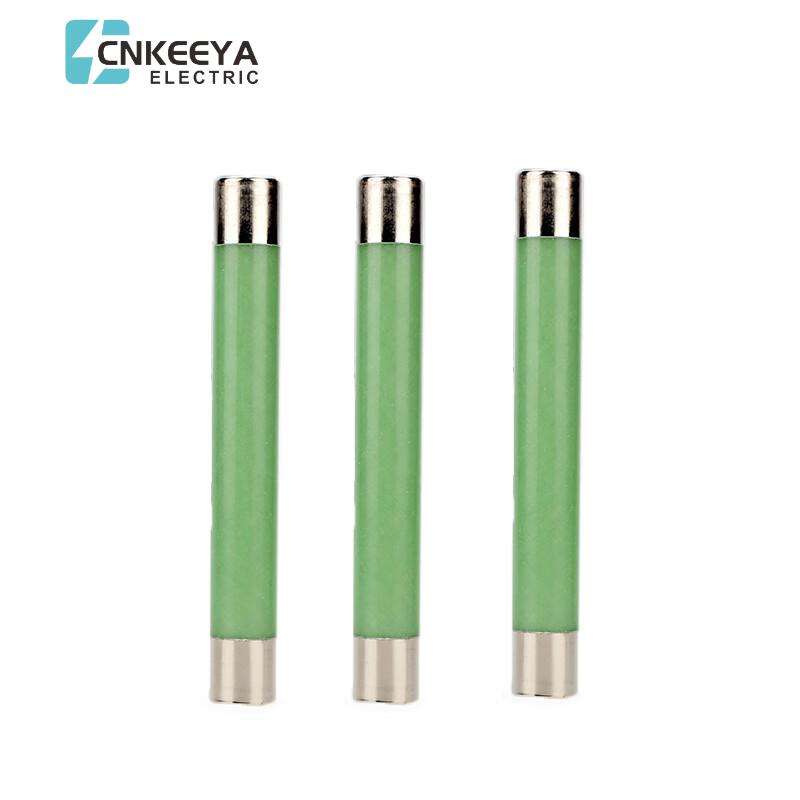

The XRNP voltage transformer protection high-voltage current limiting fuse is used for overload and short-circuit protection of voltage transformers in indoor AC 50Hz, rated voltage 11KV systems.
The XRNP structure generally includes fuse tubes, contact conductive parts, supporting insulators, and bases. The fuse tubes are filled with quartz sand particles for arc extinguishing. Fused parts are metal wires or sheets made of metal materials with lower melting points, connected in series in the protected circuit. When the circuit or equipment in the circuit is overloaded or malfunctions, the melted parts generate heat and melt, thereby cutting off the circuit and achieving the purpose of protecting the circuit or equipment.
Model Rated working voltage (kV)Fuse body rated current (A)Rated drop-out current(KA)Overall dimension(mm)Weight(g) XRNP13.60.5,1,2,3.15,6.3501420.19 XRNP17.20.5,1,2,3.15,6.350 142(195)0.19(0.22) XRNP1120.5,1,2,3.15401950.22 XRNP1240.5,1,2,3.15403550.43 XRNP140.50.5,1,2,3.15504650.55 XRNP2120.5,1,2,3.1550 1.12
Model Number:XRNP-(12-40.5)kV/(0.5-3.15)A
Product name:high voltage hrc fuse
Color:Custmoized
Voltage:12V 24V 48V
MOQ:10PCS
Customized:Accept Special
Product Keywords:Fuse
Function:Current Protection
