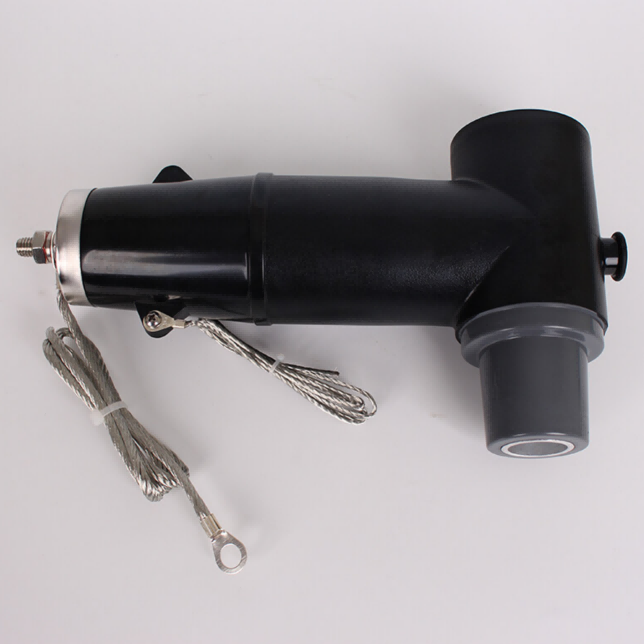

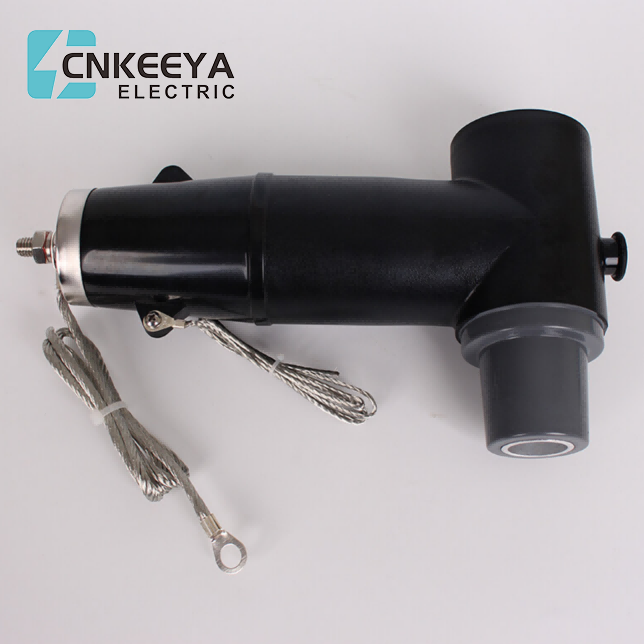

Lightning protector HB-17/45

Lightning protector

HB-17/45

YH5W 10KV Series Polymer Housing Metal-oxide Surge ArresterPower system of all kinds of electrical equipment (transformer, reactor, capacitor,

generator, motor, PT, CT, circuit breaker, contactor, etc.) the basis of insulation cooperation, by the protection performance of the arrester to determine the power system of all electrical equipment internal and external insulation indicators (short-time power frequency voltage, lightning impact voltage and operating impact voltage, etc.).

Conditions of use:

1, the ambient temperature range -40~+40

2, the altitude does not exceed 2000m(plateau areas should be explained when ordering)

3, the power supply frequency is 48-62HZ

4.The maximum wind speed should not exceed 35m/s

5, earthquake intensity below 7 areas

6. The power frequency voltage applied to the arrester for a long time does not exceed the continuous operation voltage of the arrester

Have the advantages of small size Light weight, Pollution resistance and no cleaning,explosion-proof and shock-proof, and are the preferred lightning protection components in integrated, modular middle and high voltage transmission equipment.
