VCB trip coil closing coil DC48V

VCB trip coil closing coil DC48V

The pictures are for reference only.

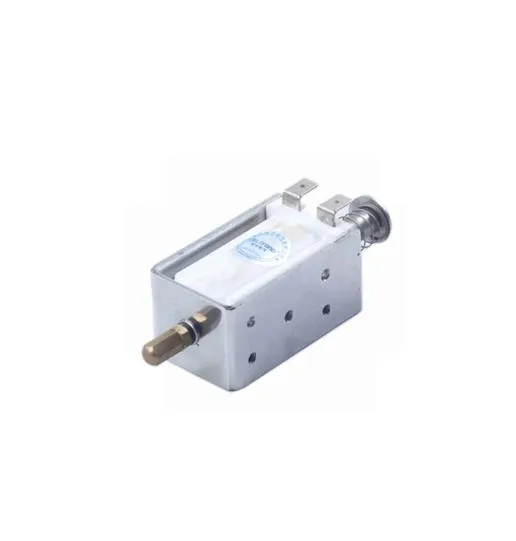

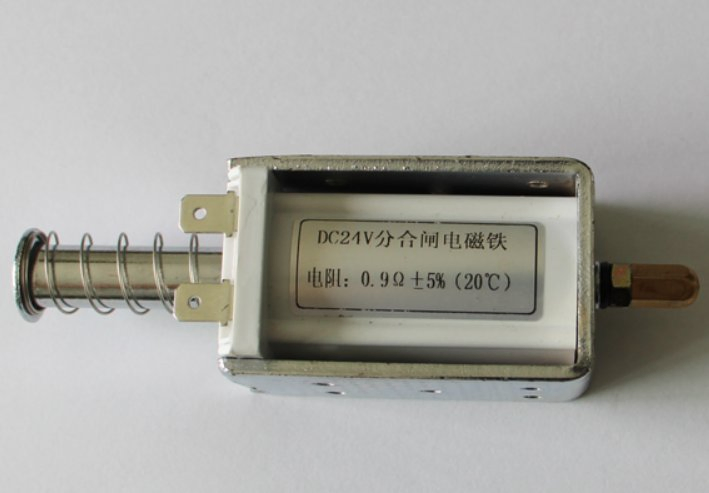

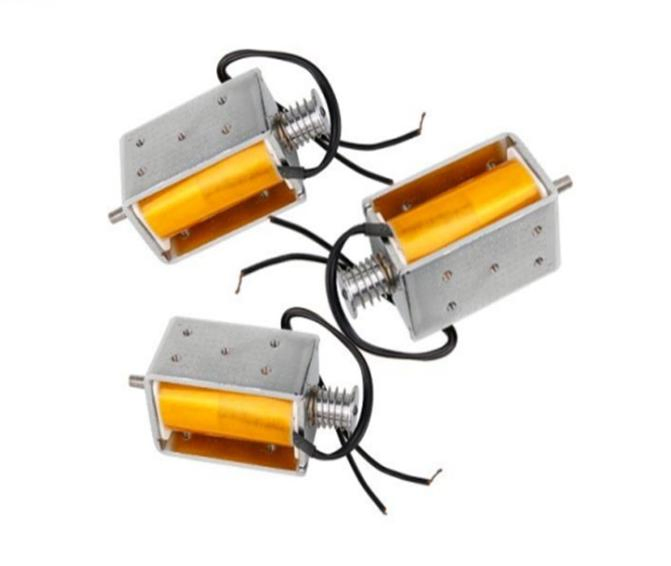

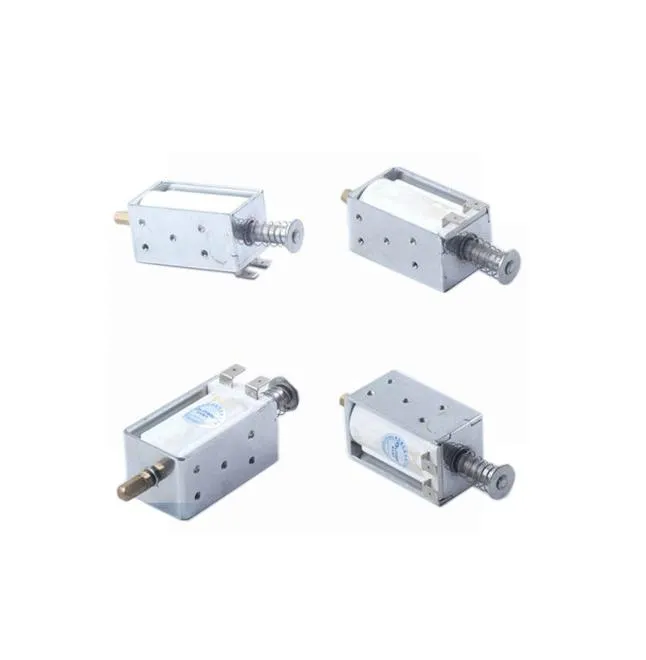

VS1 solenoid coil for VS1 Vacuum Circuit Breaker  ( Opening and Closing coil )

VS1 Solenoid coil is a mechanism sticking the closing operation of circuit breaker.When charged,it can retract to operate closing.When uncharged, it can pop up to prevent the closing operation.

This type of solenoid coil mainly apply on circuit breaker(type:ZN63)VS1 and PT handcart as a circuit breaker switch on the control module.

This type of closing coil (points closing electromagnet) is a core-driven, mainly by the coil, moving core, mounting base, the return spring and so on.

The specialty is perfect manufacture, reliable performance, long life, high temperature.

The closing coil is the core part of the motorized closing section of a high-voltage circuit breaker and is a hollow cylindrical coil made of copper wire.

The opening and closing coils of a circuit breaker are the electromagnets that remotely control the closing/opening of the circuit breaker to electromagnetically drive the mechanical mechanism of the breaker.

1.A part on circuit breaker VS1(ZN63-12),PT handcart

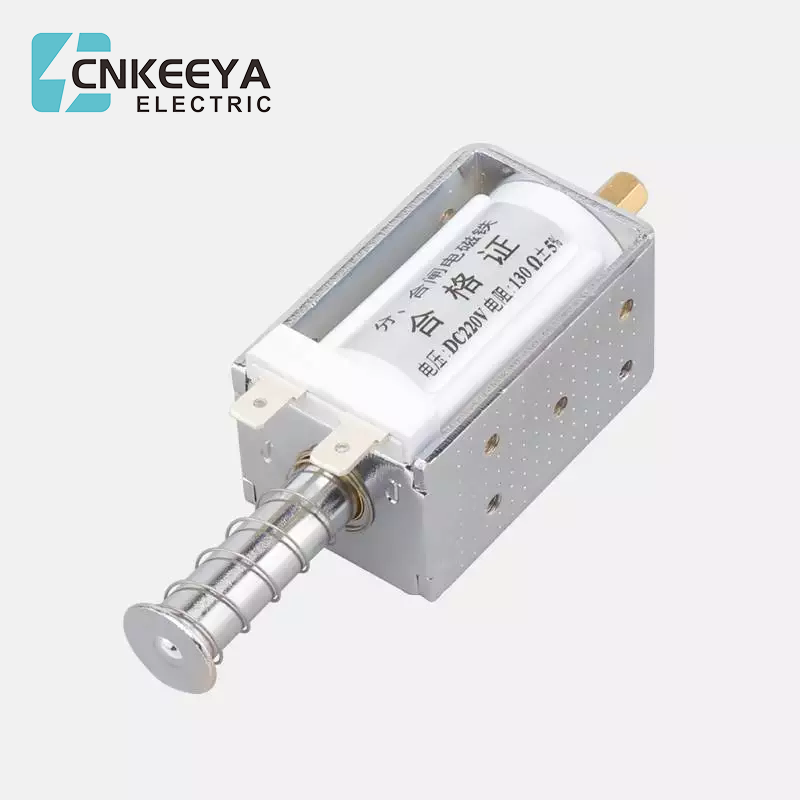

2.Use on medium & high voltage.Conventional voltage DC220V, 131Ω, special can be customized.

3.Good quality and Wholesale Price

4.Good after-sale service
