6L2-V AC Voltmeter 6L2 Pointer Voltmeter

Voltmeter

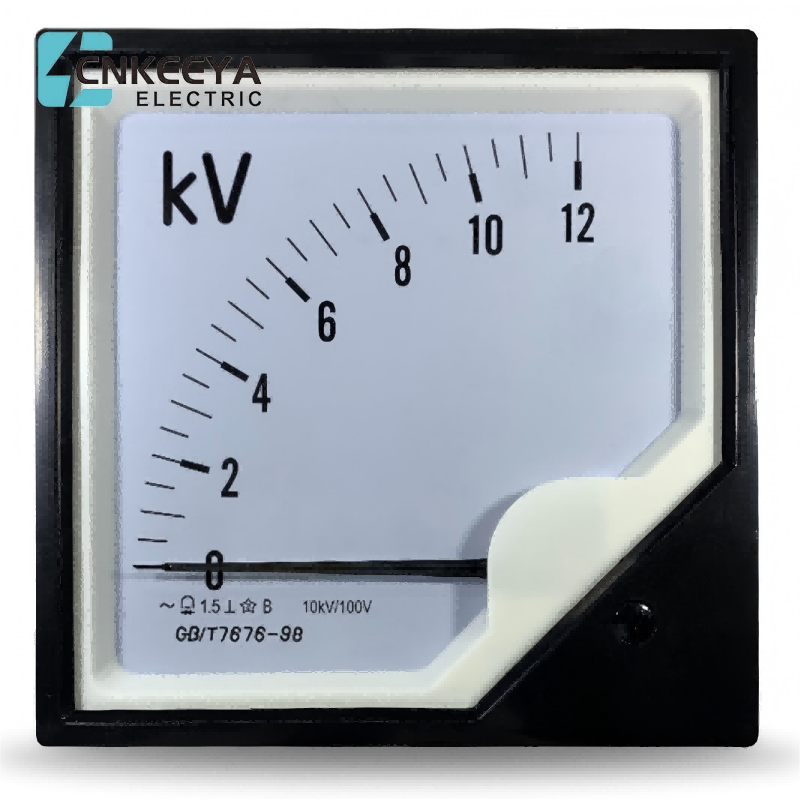

99T1-V 11/0.1kV

99T1 voltmeter 99T1-V single-phase voltmeter wholesale 10kV adopts the national standard GB/T7676-1998, which is equivalent to the International Electrotechnical Commission standard IEC (Fourth Edition) and has some indicators better than the Japanese industrial standard JISC1102. The advanced movement structure of this series of electric meter measuring mechanisms is supported by magneto electric tension wires, with no friction in the rotating parts, reliable operation, and high resistance to mechanical impact. The advanced converter circuit and indicator mechanism are integrated to form an AC current and voltage meter. The effective value converter is used to accurately measure voltage, current, active and reactive power meters. The integrated time division multiplier is used, resulting in reliable operation and high measurement accuracy.

Technical parameters:

Installation hole size: 48x848mm, external dimensions: 45x45MM.

Instruction manual: If you need a specification manual, please call for detailed consultation.

How to read: Under normal working conditions of the instrument, the reading is the same as where the dial pointer points.

Specification range: There is no limit to the range, and it can be customized. You can call or provide pictures. Please contact us for more information.

How to choose: Choose according to the actual situation. The AC ammeter can directly measure 0~50A, and when it exceeds 50A, it can be used with a BH0.66 current transformer. The DC ammeter can directly measure 0~10A, and when it exceeds 10A, it can be used with an FL2 current divider; The AC voltmeter can be used directly from 0 to 750V, and when it exceeds 750V, it can be used in conjunction with an external resistor.

Standard: GBT7676-98

Accuracy: 1.5 or 2.5 levels, customizable up to 1.0 level.
